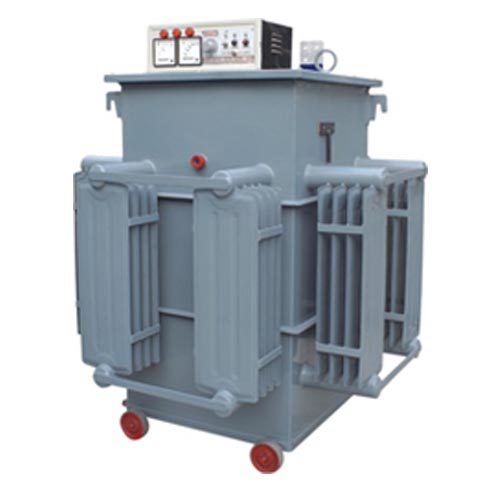

Rolling Contact Servo Stabilizer
Rolling Contact type servo stabilizer, hold its potential for units having either L.T. supply or low capacity H.T connections facing frequent breakdowns / problems due to high or low voltage fluctuations. our servo stabilizer helps preventing direct exposure of fluctuating voltage and maintaining proper voltage supply as desired.
In some or other way voltage fluctuation is a common phenbomenon in every industry and keeping in view the current modification , stable electricity distribution will take a long way" normally input voltage is low during day time and high during night hrs. resulting in frequent electrical breakdown and consequently effects the production and overall expenses.
Specifications
- Rating upto 5000 KVA
- Input Voltage 360-460V/360-460V/300-460V (further on request)
- Output voltage 400V/415V/+/-1%, 50 Hz (as required)
- Cooling naturally oil cooled/air cooled type:indoor / outdoor (as required)
- Correction speed 10-15V/sec
- Wave form distortion virtually Nil
- Response Time instantaneous
- Duty Cycle 24 hrs continous on 100 % load
- Operating Temperature 45 C above ambient
- Mounting Uni-direction wheels
Advantages
- Minimal power consumption
- Power saving ( reduction in power bills )
- Reduction in breakdown of electrical/electronic equipments
- Reduction in MDI
- 5 year Guarantee
- Uniform Quality / lesser Tripping
- Improvement in quality of end products
- Better efficiency in Plant
- Unmeasurable Benefits
- Depreciation as per income tax act
